GEONET, the central Dutch website on Geotechnics, developed the Dutch national GEF-standard on geotechnical data-exchange. CPeT-IT provides support for importing data from a GEF CPT data file.

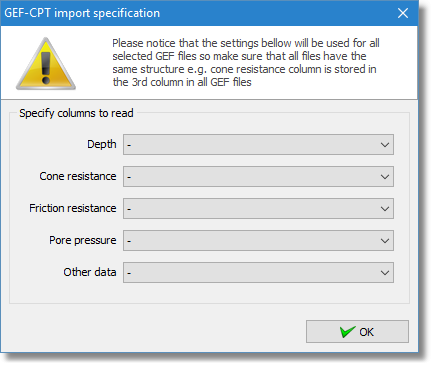

Browse to the directory where your .gef files are stored and select one so that you can specify the structure of the file. When you select a .gef file the following dialog appears:

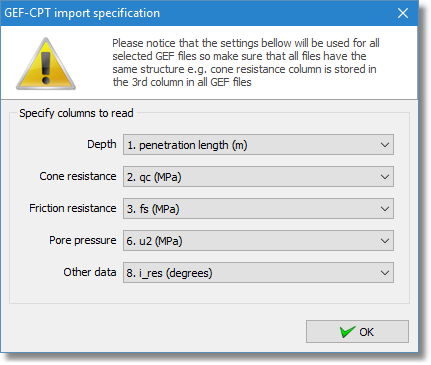

The software will read the file and fill the drop down lists with the information that is included in it. You must make the appropriate selections keeping in mind that you must provide information for at least four columns. The dialog then can look like this:
You can see that the measured pressures are all in MPa so you will have to make the appropriate conversions. Click ok the OK button to close the dialog. Now the data are visible in the Data preview area. The Data delimiter should be set to Tab delimiter.
The columns association defined in the above dialog will be used for all selected .gef files in the Files selection list box. If you wish to redefine columns, just click on the small button located above and to the right of the file list.
