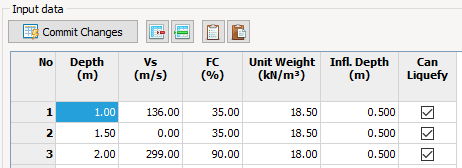

Input raw data needed to perform calculation are:
•Depth: Depth of test measured from free ground surface.
•Vs: Shear waves velocity at test depth.
•FC: Fines content at test depth in percentage. In case no value is entered the software will use the previous known value, if no previous value is present then fines content will be considered zero.
•Unit Weight: Soil unit bulk weight at test depth. If no value is present the software will sue previous known value. Default value is defined in the Calculation Properties dialog.
•Infl. Depth: This value is considered as the soil layer thickness to be considered when calculating settlements.
•Can Liquefy: When not checked the software will set liquefaction Cyclic Resistance Ratio to 4.0 and Factor of Safety to 2.0.
To load the Vs data in the Quick Data Preview plot click on the Commit Changes button located above the data grid.
Commit changes
The data grid supports the basic keyboard commands in order to copy selected cells (CTRL+C), paste values from clipboard (CTRL+V) or delete selected cells values (DELETE).
