CPeT-IT User's Manual v.3.0

CPTu data can be used to directly estimate induced settlements due to an external load. CPeT-IT uses the following simple formula (based on 1-D consolidation) to estimate vertical settlements:

where:

q: applied footing pressure

h: calculation layer thickness

Iz: stress reduction factor according to Boussinesq

MCPT: Constrained modulus of soil layer

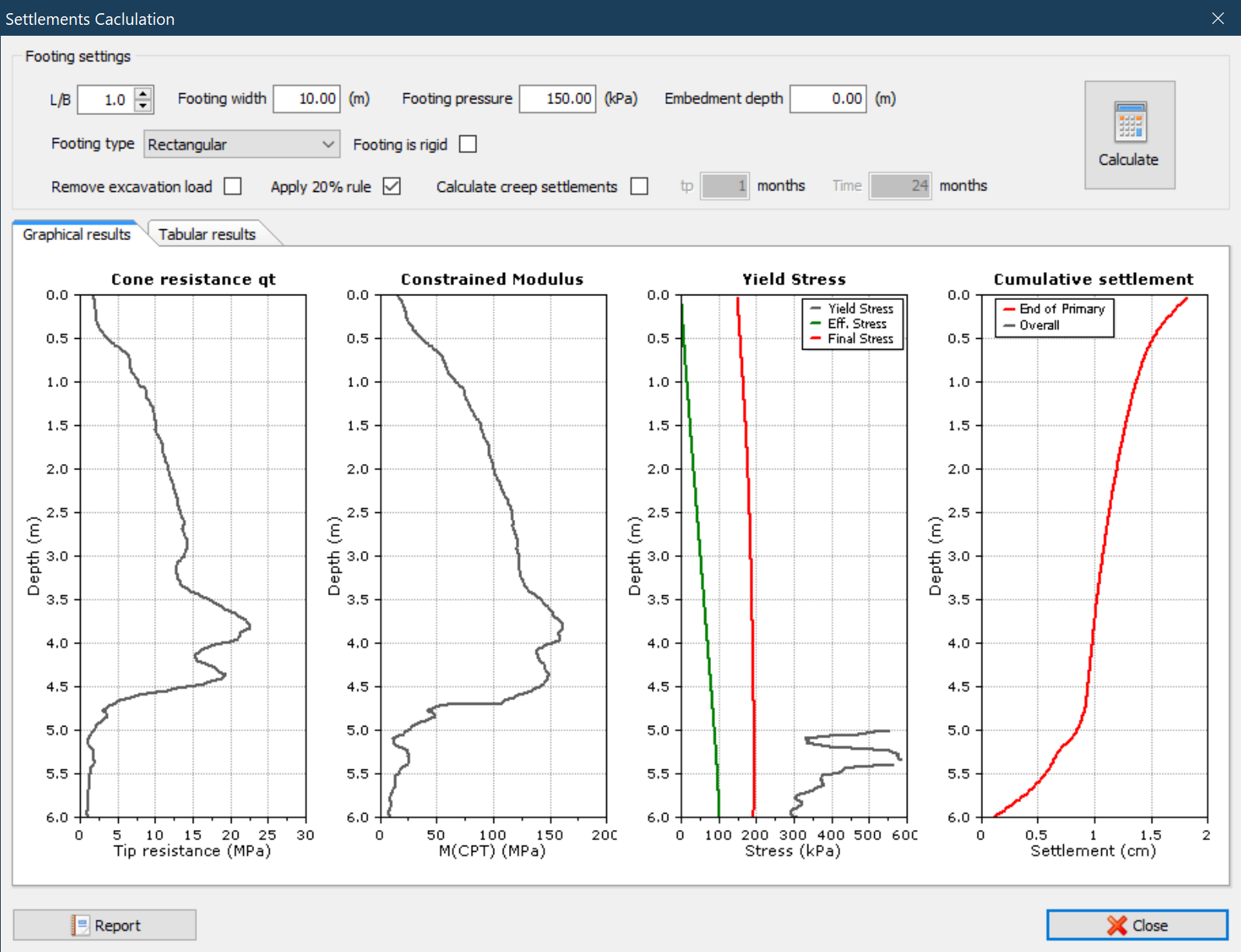

After you have selected a CPTU file from the CPT file Manager click on then settlements calculation tool button . The following dialog will appear:

All properties used for the calculation can be entered on the fields that appear at the top of the dialog. When all input data are entered the calculation is performed by clicking on the Calculate button. The Graphical results tab will display the calculation results using the three plots available. The Tabular results tab displays the numeric calculation results inside a table as shown in the picture below:

Double clicking inside the table initiates the procedure to export the results in a XLS file format.

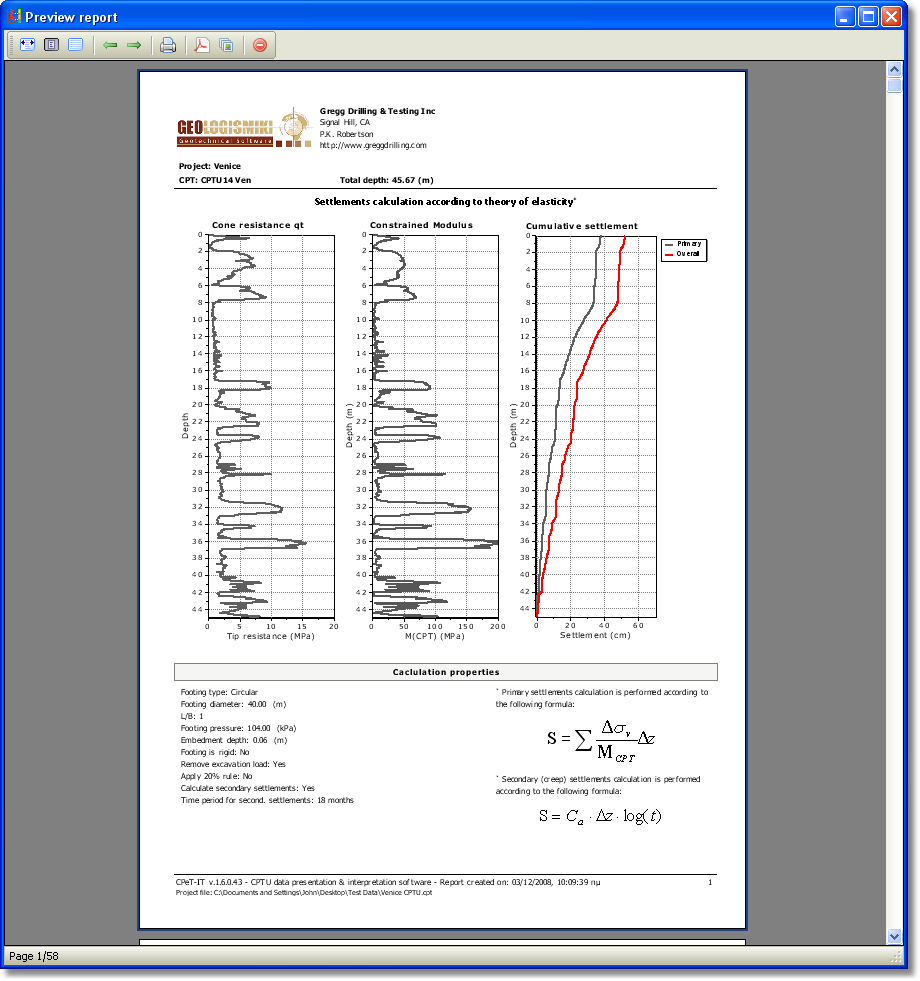

To preview the settlements report, click on the Report button.

Creep settlements are estimated using the simplified approach suggested by Messi (1994) where:

where M is estimated from the CPT.
